Welcome to Shanghai Qiao Feng industrial co., LTD's website

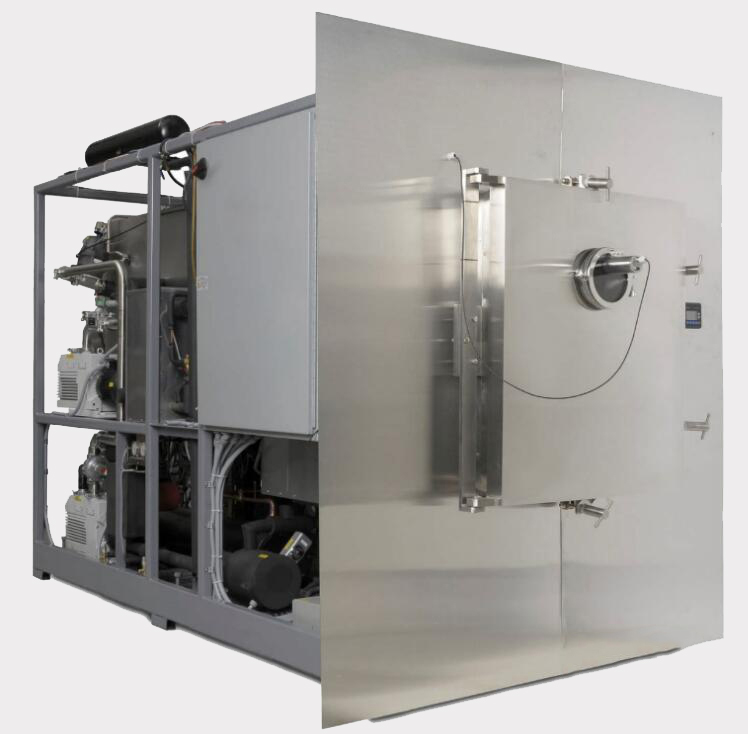

| Device name: | Silicone oil in-situ freeze drying machine |
| Equipment type: | qfn - dgj - gzl - 2 |
| Dry area: | 1.5 (support for customized) |
| Test machine: | Support test making experiment |
| Scope of application: | Vegetables, fruits, plants, flowers, condiments, aquatic products, biological products, medicines, beverages, specimens, etc. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |
The color LCD touch screen +PLC+PID is the core of the control system. The control system is stable, reliable and easy to operate. Several dozens of freeze-drying curves are built, which can store 20 programs, each program can set up 36 segments. The freezing dryer can modify the program parameters during the operation and record the final drying curve. It
All freeze-drying processes of the production freeze-drying machine are controlled by program from freeze-drying to defrosting.
By controlling the temperature generated by heating the diaphragm, the uniformity of temperature is more accurate and the freeze-drying speed is increased.
The freezer has a refrigeration system under the tray, which can pre freeze the samples before freezing.
After the freeze drying, the cold trap is defrosting quickly to shorten the next freeze-drying time.
Under the vacuum condition, the sealing gland system adopts an oil cylinder to achieve a safe and precise sealing function.
Curve data recording system, USB interface data memory can store data in the computer and realize printing.
Ethernet is connected with computer remote control to record freeze-drying parameters and monitor and control freeze drying process.
|
Freeze-dried area |
qfn - dgj.gzl - 2 |
qfn - dgj.gzl - 3 |
qfn - dgj.gzl - 5 |
qfn - dgj.gzl - 10 |
qfn - dgj.gzl - 13 |
qfn - dgj.gzl - 15 |
qfn - dgj.gzl - 20 |
qfn - dgj.gzl - 25 |
qfn - dgj.gzl - 30 |
qfn - dgj.gzl - 40 |
|
Shelf area |
Two point one six |
Three point two |
Five point four |
Ten point two |
Twelve point nine six |
Fourteen point four |
Nineteen point seven three |
Twenty-four point five nine |
Twenty-nine point six |
Forty-one point eight six |
|
Cold trap water capture |
Thirty |
Fifty |
One hundred |
Two hundred |
Two hundred and fifty |
Three hundred |
Four hundred |
Five hundred |
Six hundred |
Eight hundred |
|
Bottled load (22mm) of Xilin |
Four thousand |
Six thousand |
Eleven thousand and four hundred |
Twenty-two thousand |
Twenty-nine thousand and four hundred |
Thirty-two thousand and seven hundred |
Forty-four thousand and eight hundred |
Fifty-five thousand and eight hundred |
Sixty-seven thousand and two hundred |
Ninety-five thousand and one hundred |
|
Bottled load (16mm) of Xilin |
Eight thousand |
Twelve thousand |
Twenty-one thousand and five hundred |
Forty-one thousand and nine hundred |
Fifty-five thousand and six hundred |
Sixty-one thousand and eight hundred |
Eighty-four thousand and seven hundred |
One hundred and five thousand and six hundred |
One hundred and twenty-seven thousand |
One hundred and seventy-nine thousand |
|
Shelf length |
Nine hundred |
Eight hundred and fifty |
One thousand and two hundred |
One thousand two hundred and fifty |
One thousand and two hundred |
One thousand and two hundred |
One thousand four hundred and ninety-five |
One thousand four hundred and ninety-five |
One thousand and eight hundred |
Two thousand |
|
Shelf width |
Five hundred |
Six hundred |
Nine hundred |
Nine hundred |
One thousand and two hundred |
One thousand and two hundred |
One thousand and two hundred |
One thousand four hundred and ninety-five |
One thousand four hundred and ninety-five |
One thousand four hundred and ninety-five |
|
Shelf Number |
5+1 |
6+1 |
5+1 |
9+1 |
9+1 |
10+1 |
11+1 |
11+1 |
11+1 |
14+1 |
|
Whole machine size (mm) |
Three thousand and six hundred |
Three thousand and nine hundred |
Four thousand and five hundred |
Five thousand and two hundred |
Six thousand and five hundred |
Six thousand and five hundred |
Seven thousand and three hundred |
Seven thousand and three hundred |
Seven thousand and six hundred |
Eight thousand |
|
Whole machine size (mm) |
One thousand seven hundred and fifty |
Two thousand and two hundred |
Two thousand and three hundred |
Two thousand and two hundred |
Two thousand and three hundred |
Two thousand and three hundred |
Three thousand |
Three thousand |
Three thousand |
Three thousand and two hundred |
|
Full machine size (mm) |
Two thousand eight hundred and fifty |
Three thousand and one hundred |
Three thousand and one hundred |
Three thousand and eight hundred |
Three thousand and nine hundred |
Three thousand and nine hundred |
Four thousand and two hundred |
Four thousand and two hundred |
Four thousand and two hundred |
Four thousand and six hundred |
|
Rough weight (ton) |
Three |
Four point five |
Seven |
Ten |
Twelve point five |
Thirteen |
Seventeen point five |
Twenty |
Twenty-five |
Thirty |
