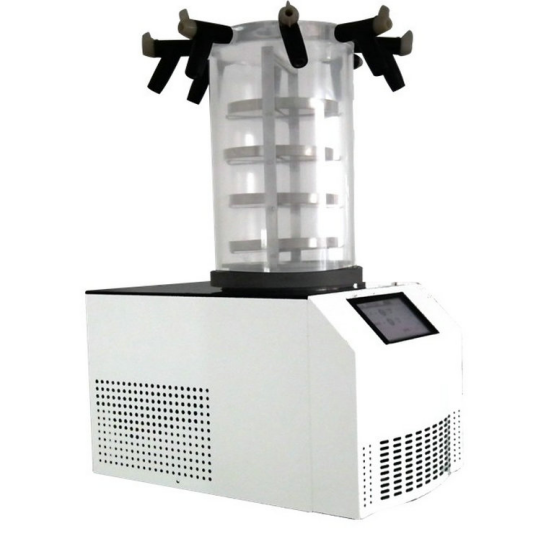

| Device name: | Ordinary multi manifold vacuum freeze drier |
| Equipment type: | QFN-DGJ-N series |
| Freeze-dried area: | 0.12 (support for customized) |
| Test machine: | Support test making experiment |
| Scope of application: | Vegetables, fruits, plants, flowers, condiments, aquatic products, biological products, medicines, beverages, specimens, etc. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |
QFN series freeze drying machines include: laboratory economic N series vacuum freeze dryer (QFN-DGJ-N Series), economic FE series electric heating pilot vacuum freeze dryer (QFN-DGJ-FE Series), F series silicon oil heating production vacuum freeze dryer (QFN-DGJ-F Series), small production / pilot production / freeze-drying area greater than 3 square or above production (QFN-DGJ-GLZ Series), food grade vacuum freeze dryer (QFN-DGJ-FD Series), and other 5 major categories, a total of dozens of models to meet the needs of different users.
Logistics, biology, medicine, chemistry, pathology, zoology, forensic identification, food health products, archaeology, printing, geology and so on.
It is suitable for freeze drying of bacteria, virus plasma, serum, antibody, vaccine, medicine, microorganism, yeast, cosmetics, health products, Chinese herbal medicine, chemical and biological research plant extraction.
Vacuum freeze-drying is a technique using the principle of sublimation to dry. It is a process that freezes the dry matter at low temperature and then directly sublimate the frozen water molecules into the vapour escape under the vacuum environment in use. The freeze drying product is called the freeze-dried substance (Lyophilizer). This process is called the process known as the freeze-drying. Freeze-dried (lyophilization). Before drying, the material is always at low temperature (freezing state), and the ice crystal is evenly distributed in the substance. The distillation process will not be concentrated because of dehydration. It avoids the side effects of water vapour producing foam and oxidation. The dry matter is porous with dry sponge, the volume is basically unchanged and it easily dissolves in water and is easily restored to the original form. To prevent physical and biological variability of dry matter to a maximum extent.
2, the introduction of product classification
|
Model |
qfn - dgj - 10n |
qfn - dgj - 12n |
qfn - dgj - 18n |
|||||||||||||
|
Specifications |
Company |

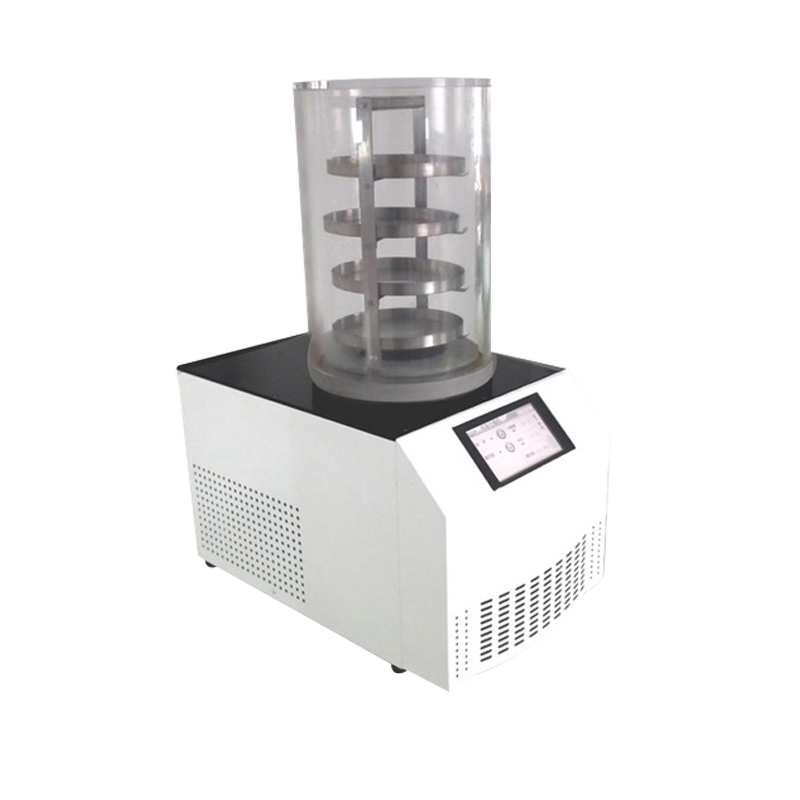

Ordinary -A |
Capping -B |
Common multi manifold -C |

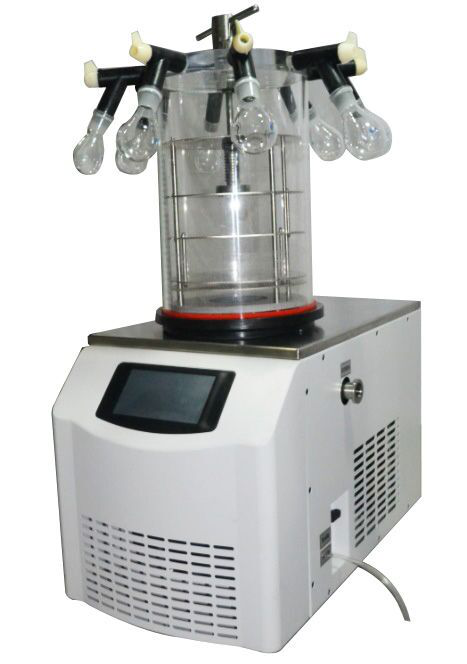

Cover multiple manifold -D |

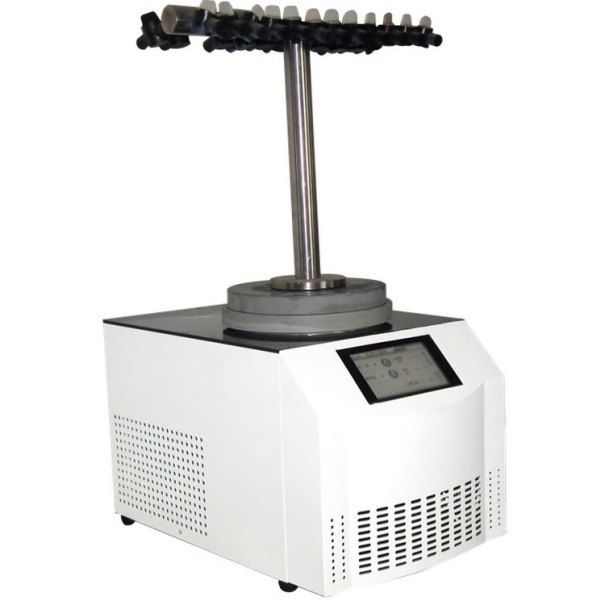

T type |
Ordinary -A |
Capping -B |
Common multi manifold -C |
Cover multiple manifold -D |
T type |
Ordinary -A |
Capping -B |
Common multi manifold -C |
Cover multiple manifold -D |
T type |
|
Freeze-dried area |
㎡ |
Zero point one two |
Zero point zero nine two |
Zero point one two |
Zero point zero nine two |
/ |
Zero point one two |
Zero point zero nine two |
Zero point one two |
Zero point zero nine two |
/ |
Zero point two seven |
Zero point zero nine two |
Zero point two seven |
Zero point zero nine two |
/ |
|
Material plate |
mm |
200*4 |
200*3 |
200*4 |
200*3 |
/ |
200*4 |
200*3 |
200*4 |
200*3 |
/ |
240*4 |
200*3 |
240*4 |
200*3 |
/ |
|
Assembly material |
L |
One point five |
One |
One point five |
One |
/ |
One point five |
One |
One point five |
One |
/ |
Two |
One |
Two |
One |
/ |
|
Cold well temperature (no-load) |
℃ |
<-50 (-80 can be selected) |
||||||||||||||
|
vacuum degree |
Pa |
<10pa |
||||||||||||||
|
Interlayer spacing |
mm |
Seventy |
||||||||||||||
|
Number of Xilin bottles |
raptors |
Two hundred and sixty |
One hundred and sixty-five |
Two hundred and sixty |
Two hundred and sixty |
/ |
Two hundred and sixty |
One hundred and sixty-five |
Two hundred and sixty |
One hundred and sixty-five |
/ |
Three hundred and sixty |
Two hundred and seventy |
Three hundred and sixty |
Two hundred and seventy |
/ |
|
ф16 |
Four hundred and eighty |
Two hundred and eighty-five |
Four hundred and eighty |
Four hundred and eighty |
/ |
Four hundred and eighty |
Two hundred and eighty-five |
Four hundred and eighty |
Two hundred and eighty-five |
/ |
Seven hundred and forty |
Five hundred and sixty |
Seven hundred and forty |
Five hundred and sixty |
/ |
|
|
ф12 |
Nine hundred and twenty |
Five hundred and sixty |
Nine hundred and twenty |
Nine hundred and twenty |
/ |
Nine hundred and twenty |
Five hundred and sixty |
Nine hundred and twenty |
Five hundred and sixty |
/ |
One thousand three hundred and twenty |
Nine hundred and ninety |
One thousand three hundred and twenty |
Nine hundred and ninety |
/ |
|
|
Ampoule bottle |
individual |
/ |
/ |
/ |
/ |
Twenty-four |
/ |
/ |
/ |
/ |
Twenty-four |
/ |
/ |
/ |
/ |
Twenty-four |
|
Wide mouth bottle |
individual |
/ |
/ |
/ |
/ |
Eight |
/ |
/ |
/ |
/ |
Eight |
/ |
/ |
/ |
/ |
Eight |
|
Water catching capacity |
Kg |
Three |
Four |
Six |
||||||||||||
|
Power requirements |
v / hz |
220v / all rolling stock required to operate on |
220v / all rolling stock required to operate on |
220v / all rolling stock required to operate on |
||||||||||||
|
Total power |
W |
Eight hundred and fifty |
Nine hundred and fifty |
One thousand and three hundred |
||||||||||||
|
Mainframe size |
mm |
500*400*370 |
500*400*650 |
800*530*900 |
||||||||||||
|
Placement method |
/ |
Desktop |
vertical |
vertical |
||||||||||||
