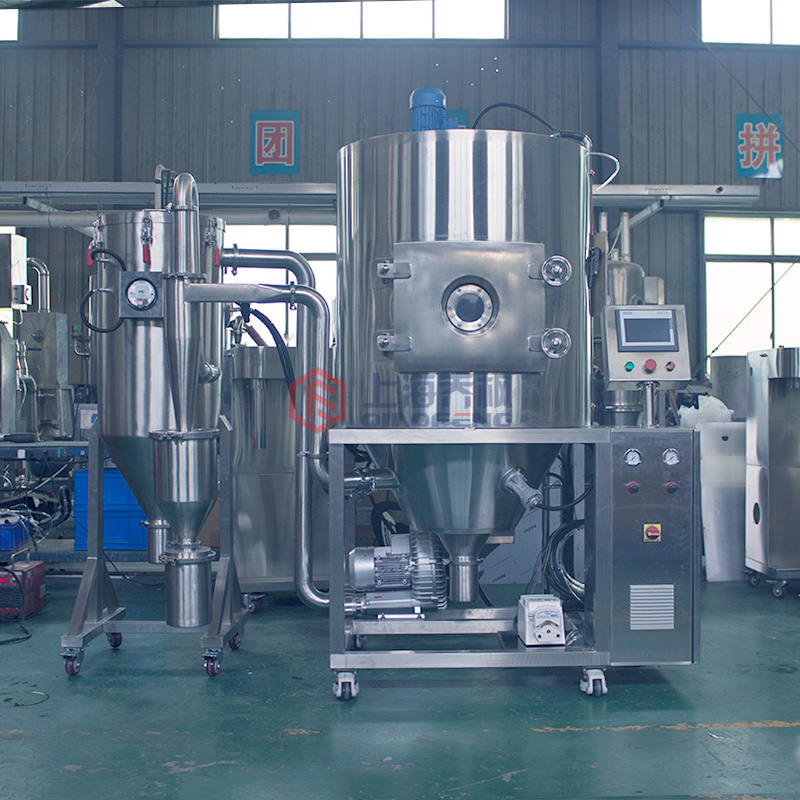

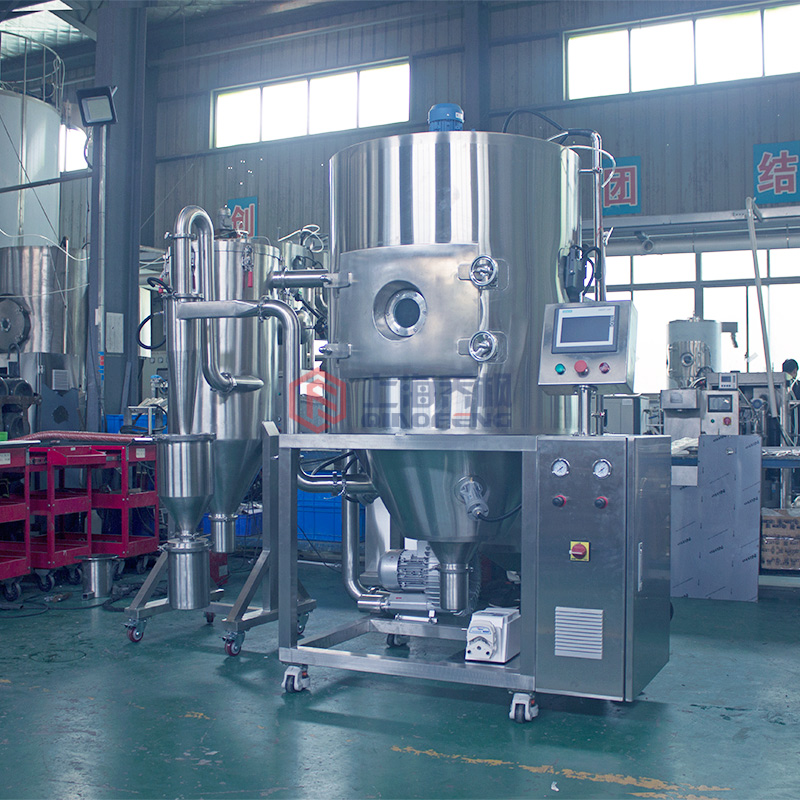

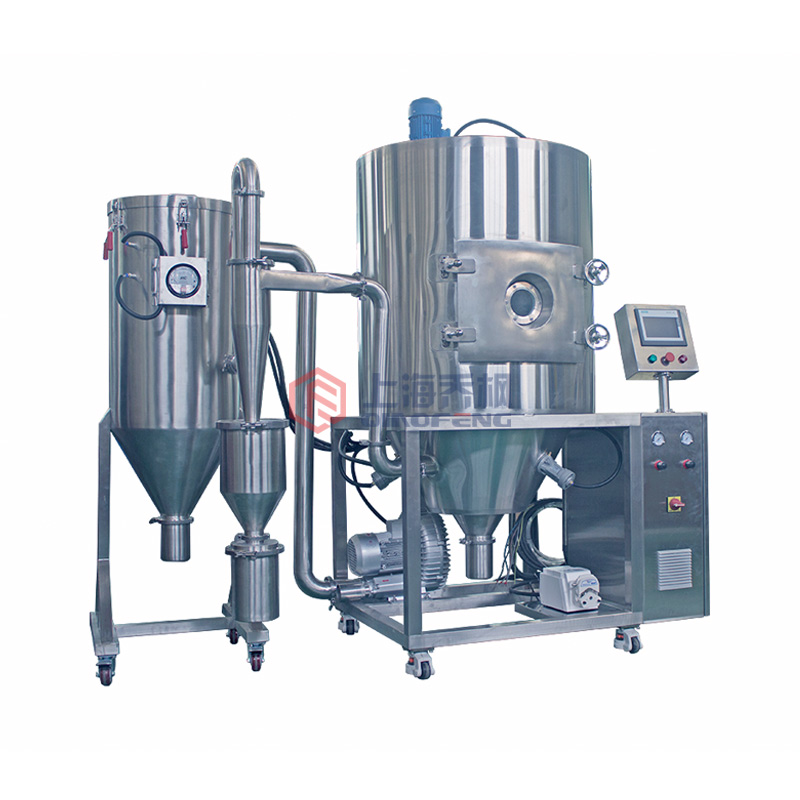

| Device name: | High speed centrifugal spray dryer |
| Equipment type: | qfn - l - 5 |
| Equipment specifications: | 5Kg/h (support customized) |
| Test machine: | Support test making experiment |
| Scope of application: | Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |
1. product features:
3. device parameters
| Centrifugal spray dryer |
qfn - l-Five |
qfn - l-Ten |
qfn - l - 15 |
|
Water evaporation |
5Kg/h |
10Kg/h |
15Kg/h |
|
Minimum feed volume |
80ml |
120ml |
150ml |
|
The diameter of the drying chamber (mm) |
￠800 |
￠1200 |
￠1600 |
|
Height of dry tower (mm) |
￠800 |
￠1200 |
￠1500 |
|
Atomization structure |
Centrifugal atomizer (QFN-L-RODVER2018-1A) speed: 32000r/min (adjustable) |
||
|
Electronic control system |
Qiao Feng centrifugal atomization system (QFN-L-ES-VER2018-1A) |
||
|
Maximum inlet temperature (centigrade) |
Two hundred and sixty |
||
|
Heater capacity |
10kw |
20kw |
28kw |
|
Air blower [power (kw), air volume (m /min)] |
nothing |
[0.25,9.5] |
[0.25,9.5] |
|
Draft fan [power (kw), air volume (m /h)] |
[1.5，250] |
[2.2，300] |
[2.2，1410] |
|
Compressor [power (kw), air volume (L /min)] |
[0.58，108] |
[1.5，250] |
[1.5，250] |
|
Electric power (installed capacity) |
15kw |
35kw |
45kw |
|
Thermal insulation material |
50mm glass fiber insulated cotton |
50mm glass fiber insulated cotton |
50mm glass fiber insulated cotton |
|
Shape size (mm) (L x W x H) |
1600×1400×1800 |
2200×1600×2200 |
2600×1200×2500 |
|
Installation weight (Reference) |
300kg |
600kg |
1000kg |
|
Power supply |
380V/-3: it can be customized according to different national standards. |
Water vaporization at the inlet temperature of 250 degrees centigrade, 1:
2: for more evaporation equipment, please inquire online or call our company.
